Ampli Op 741 Datasheet: The Ultimate Guide for Electronics Makers
When it comes to operational amplifiers, the Ampli Op 741 is a timeless classic. Whether you’re a student, a DIY enthusiast, or a professional engineer, understanding the ampli op 741 datasheet is essential. This detailed component, widely used in analog electronics, plays a central role in circuits involving signal amplification, filtering, and voltage comparison.
In this comprehensive article by Shop4Makers, we break down everything you need to know about the ampli op 741 datasheet — from key electrical characteristics to common applications and limitations. Let’s dive in.
1. Understanding the Basics of the Ampli Op 741
A. What Is an Operational Amplifier?
An operational amplifier, or op-amp, is an integrated circuit that can amplify weak electrical signals. The 741 model is one of the oldest and most popular op-amps in the world, appreciated for its simplicity and ease of use.
The ampli op 741 datasheet provides essential specifications that help you design precise circuits using this IC. Knowing how to interpret these numbers can make or break the performance of your project.
B. What Makes the 741 So Popular?
- Universally available
- Inexpensive and reliable
- Suitable for both educational and industrial use
- Large support community and tutorials
- Adequate performance for general analog tasks
2. Key Parameters in the Ampli Op 741 Datasheet
When you open a 741 datasheet, you’ll find a variety of electrical and mechanical properties. Here’s what you should pay close attention to:
A. Input Offset Voltage
Typically around 1 mV, this represents the voltage difference needed between the two input terminals to make the output zero. For precision applications, this is an important spec.
B. Input Bias Current
The ampli op 741 datasheet lists this as typically 80 nA. This small current flows into the input terminals and can affect high-impedance circuits.
C. Slew Rate
The slew rate (around 0.5 V/μs for the 741) determines how fast the output voltage can change. This limits the op-amp’s ability to respond to fast-changing signals.
D. Gain Bandwidth Product
The 741 typically has a 1 MHz bandwidth. This tells you the frequency at which the gain of the amplifier starts to drop. For audio and general analog signals, this is usually sufficient.
E. Power Supply Voltage
The ampli op 741 datasheet shows a wide operating voltage range: typically ±3V to ±18V, making it adaptable to various power supplies.
3. Typical Applications of the Ampli Op 741
The 741 isn’t just a theory item—it powers real-world electronics! Based on the specifications in the ampli op 741 datasheet, here are a few popular applications:
A. Voltage Follower (Buffer)
Because of its high input impedance and low output impedance, the 741 is perfect as a buffer to prevent signal loading.
B. Signal Amplifier
It can amplify audio, sensor outputs, or other weak analog signals. The gain is often set using resistors in a non-inverting or inverting configuration.
C. Comparator
While not as fast as dedicated comparators, the 741 can be used to detect whether a signal is above or below a certain threshold.
D. Integrator or Differentiator
The ampli op 741 datasheet also shows suitability for mathematical analog operations, ideal in analog computing, sound processing, or waveform generation.
E. Active Filters
It can be used to construct low-pass, high-pass, band-pass, or band-stop filters using a combination of resistors and capacitors.
4. Important Limitations Highlighted in the Ampli Op 741 Datasheet
While the 741 is widely used, it’s not suitable for every application. Let’s explore a few of its limitations:
A. Low Slew Rate
As mentioned, the 0.5 V/μs slew rate means it struggles with high-frequency signals. It’s not ideal for fast digital signal processing or modern audio applications beyond 20 kHz.
B. Input Impedance Limitations
Though decent, the input impedance isn’t as high as modern op-amps. For very sensitive sensors, this might introduce errors.
C. No Rail-to-Rail Output
The output voltage of the 741 cannot swing all the way to the supply rails. This needs to be accounted for in low-voltage or battery-powered circuits.
D. Power Consumption
While not excessively high, the 741 is not optimized for low-power applications. If your circuit is battery-powered, a modern op-amp may be a better choice.
5. How to Read the Ampli Op 741 Datasheet Like a Pro
Here’s a checklist of what to focus on when using the ampli op 741 datasheet for your projects:

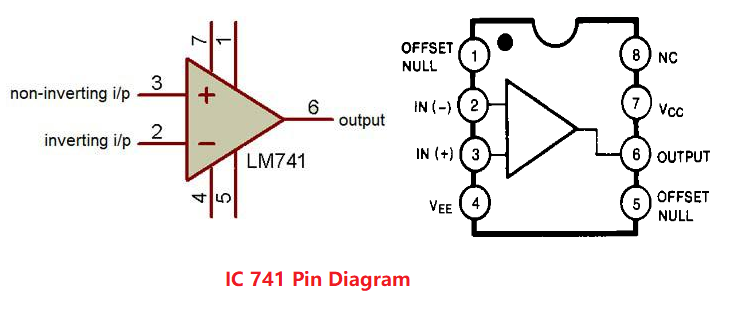

- Pin Configuration: Usually an 8-pin DIP layout. Check for correct connections.
- Absolute Maximum Ratings: To avoid damaging the chip.
- Electrical Characteristics Table: This is where most key numbers are.
- Typical Performance Curves: These show how the op-amp behaves under different conditions.
- Application Circuits: Some datasheets include example schematics for quick reference.
Real-World Tips from Shop4Makers
Here at Shop4Makers, we’ve seen hundreds of makers use the 741 in both prototyping and educational projects. Here are a few practical tips:
- Always use decoupling capacitors (0.1µF) close to the power pins to reduce noise.
- For audio applications, add a small capacitor (~10pF) between pins 1 and 8 to improve stability.
- Keep your signal traces short and use a breadboard only for testing—not final designs.
Where to Buy Ampli Op 741 ICs
You can find Ampli Op 741 ICs and other components at Shop4Makers.com. We offer:
- Affordable prices
- Fast shipping across Morocco and beyond
- Trusted electronic brands
- Technical support for your DIY questions
Looking for datasheets, tutorials, and ready-made kits using the 741? We’ve got you covered.
Conclusion: Mastering the Ampli Op 741 Datasheet
The ampli op 741 datasheet is more than a technical document—it’s your gateway to mastering analog design. By understanding its key parameters, strengths, and weaknesses, you can design robust and functional analog circuits that work reliably.
Whether you’re building your first amplifier or integrating filters into your next IoT project, the 741 is a tool worth having in your electronic toolbox.
