Arduino Motor Shield Rev3: The Ultimate Power Add-On for Your Projects
Whether you’re building your first robot or designing a complex automation system, the Arduino Motor Shield Rev3 is one of the most reliable and powerful accessories you can add to your toolkit. Designed to seamlessly integrate with your Arduino board, this motor shield simplifies the process of controlling motors, offering a practical and scalable solution for makers, students, and professionals.
In this article, Shop4Makers takes a deep dive into everything you need to know about the Arduino Motor Shield Rev3: how it works, why it’s so popular, and how it can transform your next project.
What is the Arduino Motor Shield Rev3?

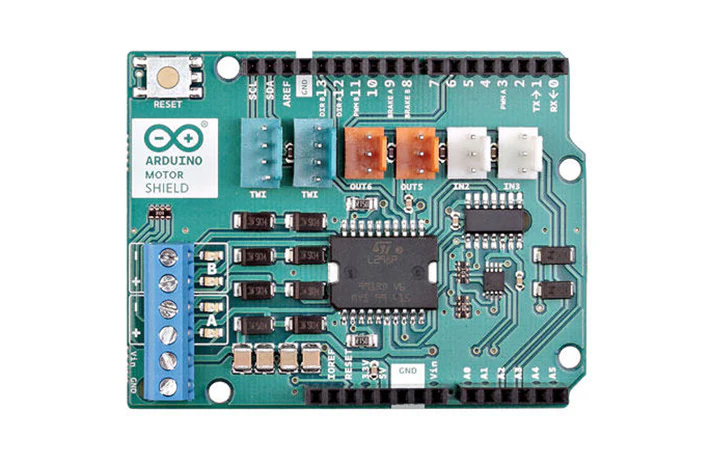

The Arduino Motor Shield Rev3 is an official add-on board developed by Arduino to simplify motor control. Based on the L298P dual full-bridge driver, the shield allows you to drive two DC motors or one stepper motor with ease, using just your Arduino board and a few lines of code.
It is fully compatible with most Arduino boards, including the Uno, Mega, and Leonardo. More importantly, it offers protection features, external power support, and additional pins that expand your possibilities without complicating your setup.
Key Features at a Glance:
- Dual Motor Control: Drive 2 DC motors independently.
- Stepper Motor Support: Control 1 stepper motor with precise movements.
- Maximum Current: 2A per channel (with external power).
- Integrated Current Sensing
- Thermal Shutdown Protection
- Compatible with Arduino IDE
5 Powerful Reasons to Choose Arduino Motor Shield Rev3
Now that you know what it is, let’s look at why the Arduino Motor Shield Rev3 stands out among other motor shields.
1. Plug-and-Play Compatibility
One of the biggest advantages of the Arduino Motor Shield Rev3 is how easy it is to integrate with your Arduino setup. The shield is designed to fit directly onto your Arduino board, eliminating the need for messy wiring or external drivers.
It also supports the standard Arduino IDE, so you don’t need any special libraries or external platforms to get started. In most cases, you can install the shield, upload a sample sketch, and watch your motor spin — all within minutes.
2. Dual DC Motor Control
For mobile robots, conveyor belts, or any project requiring two independent motors, this shield is perfect. You can control both the speed and direction of each motor individually. With PWM support and current feedback, you have a high degree of control with minimal hardware.
The Arduino Motor Shield Rev3 also supports brake and free-run modes, giving you more options when it comes to stopping and adjusting motors dynamically.
3. Stepper Motor Compatibility
If you’re working on a CNC machine, 3D printer, or any application that requires precision, the shield also supports stepper motors. Thanks to the L298P driver, you can easily send the right signals to move a stepper motor in the exact way you need — including half-step or full-step rotation modes.
This versatility means that you don’t need to switch hardware when transitioning from mobile projects to fixed or linear motion setups.
4. External Power Support for High-Load Applications
Unlike some basic shields, the Arduino Motor Shield Rev3 allows you to connect an external power source. This means you can drive motors that require more power than what the Arduino board can provide. With a voltage input range of 6V to 12V and a current of up to 2A per channel, it’s ideal for real-world applications.
This feature is essential for anyone building medium to large-sized robots or mechanical systems that involve significant torque or continuous motion.
5. Built-In Safety and Monitoring
Electronics and motors can sometimes be unpredictable, especially if you’re experimenting. Fortunately, the shield includes:
- Thermal shutdown protection to avoid overheating.
- Current sensing on each motor channel.
- Power LED indicators for visual feedback.
These built-in features make your development process safer and more reliable — especially important for educational or collaborative environments.
How to Use the Arduino Motor Shield Rev3
Getting started with the Arduino Motor Shield Rev3 is simple:
- Stack the Shield: Plug it directly onto your Arduino board.
- Connect the Motors: Use screw terminals to attach your DC or stepper motors.
- Add External Power (Optional): For more demanding motors, connect an external power supply.
- Upload Your Code: Use the Arduino IDE and the
AFMotor
orStepper
libraries. - Test and Adjust: Monitor speed, direction, and performance directly through your Arduino sketch.
With just a few components and some experimentation, you can have a functional motor control system in less than 30 minutes.
Best Projects Using Arduino Motor Shield Rev3
Here are a few project ideas you can explore with the Arduino Motor Shield Rev3:
- Line-following Robot
- Remote-controlled Car
- Conveyor Belt Sorting System
- Simple CNC Plotter
- Motorized Camera Slider
Each of these projects requires precise motor control and benefits from the robust features offered by the shield.
Where to Buy the Arduino Motor Shield Rev3 in Morocco
If you’re located in Morocco and looking for a reliable source, Shop4Makers offers the original Arduino Motor Shield Rev3 with fast local shipping and customer support. By purchasing from Shop4Makers, you also get access to tutorials, community help, and guaranteed product authenticity.
👉 Visit Shop4Makers.com to place your order and level up your next Arduino project with confidence.
Conclusion: A Smart Investment for Serious Makers
The Arduino Motor Shield Rev3 is more than just a motor controller — it’s a gateway to smarter, more efficient, and more dynamic electronics projects. Its versatility, safety, and ease of use make it ideal for hobbyists, students, and professionals alike.
Whether you’re building your first robot or scaling up to a commercial prototype, this shield has the power and features you need to succeed.
