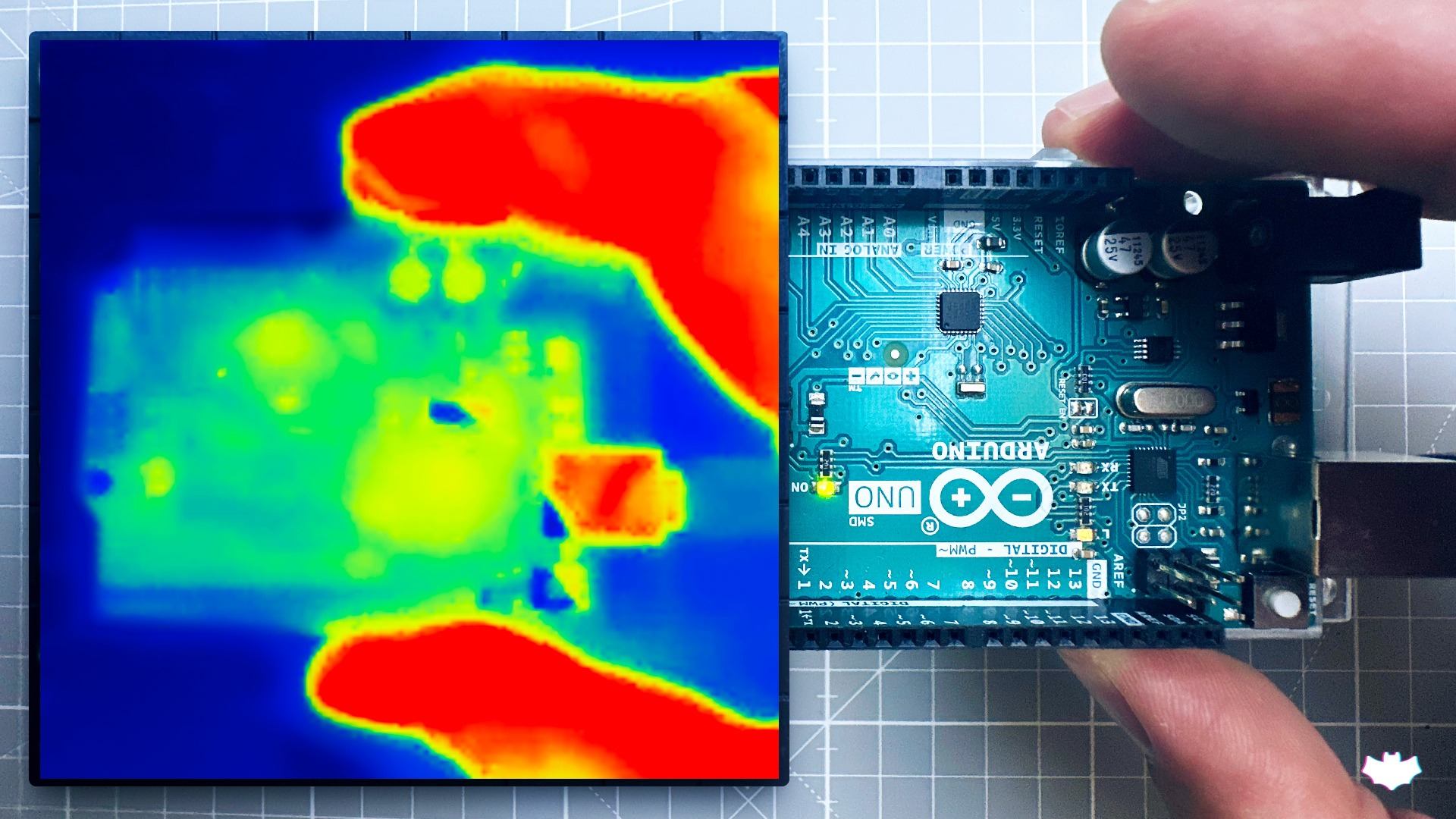

Infrared Camera Arduino: Build Smarter Projects with Thermal Vision

In the world of electronics and DIY innovations, thermal imaging is no longer reserved for military tech or industrial tools. Thanks to accessible components and open-source platforms, you can now integrate an infrared camera Arduino setup into your personal or professional electronics projects. Whether you’re a beginner, a maker, or a robotics enthusiast, this combo opens a new realm of possibilities—from smart surveillance systems to fire detection robots.

In this detailed guide by Shop4Makers, we explore everything you need to know about infrared camera Arduino systems, how to use them, and seven powerful project ideas that will ignite your creativity.

What is an Infrared Camera Arduino Setup?

An infrared camera Arduino setup combines an Arduino board (like Uno, Nano, or Mega) with an infrared (IR) or thermal camera module. These IR cameras detect heat (thermal radiation) instead of visible light and convert it into a digital signal that your Arduino can process.

Common IR Camera Modules for Arduino

  • MLX90640: 32×24 thermal resolution, great for detecting heat signatures at close range.
  • AMG8833 Grid-EYE: 8×8 pixel thermal sensor, ideal for motion and heat detection.
  • FLIR Lepton Module: A compact, high-performance thermal camera.

These modules are widely available and compatible with Arduino via I2C or SPI interfaces. Shop4Makers offers several options that suit different project needs.

Why Use an Infrared Camera with Arduino?

Integrating infrared thermal vision into your Arduino projects has several benefits:

  • Non-contact sensing: Detect temperature without touching the object.
  • Night vision: IR cameras can work in complete darkness.
  • Automation: Enable smart detection for fire, humans, or intruders.
  • Energy efficiency: Great for detecting insulation issues or overheating equipment.

7 Powerful Infrared Camera Arduino Projects You Can Build

Below are seven real-world applications and project ideas you can start developing using an infrared camera Arduino setup.

1. Human Presence Detector

One of the most basic and useful projects is a human presence or motion detector. By detecting heat signatures, IR cameras like the AMG8833 can determine when someone enters a room.

Use Case:

  • Automatic light control
  • Office energy management
  • Smart room occupancy counters

You can set a threshold temperature to trigger a relay, turning on/off appliances when a person is detected.

2. Thermal Imaging Camera

Turn your Arduino into a compact thermal imaging device. With modules like the MLX90640, you can display real-time heat maps on a small OLED or LCD screen.

Use Case:

  • DIY thermal camera
  • Fire detection in forests
  • Check temperature distribution in machinery

This project helps visualize temperature zones in your home or workshop. It’s perfect for diagnosing electronics or insulation problems.

3. Fire Detection Robot

Combine your IR camera with a robotic base and flame sensors to create a mobile robot that detects high temperatures and moves toward the heat source.

Use Case:

  • Firefighting robots
  • Fire alarms in warehouses
  • Lab safety systems

The infrared camera Arduino system can trigger audio alarms or alerts via Wi-Fi using modules like ESP8266.

4. Home Automation with Temperature Mapping

Create a smart home system that monitors temperature zones across rooms. The IR camera scans thermal readings and sends them to a central hub.

Use Case:

  • Heating optimization
  • Smart HVAC controls
  • Temperature-based fan or AC triggers

With Arduino, you can integrate this system with voice assistants like Alexa or Google Home through intermediate platforms like Blynk or IFTTT.

5. Fever Screening Station

With rising health concerns, thermal screening is crucial. A stationary setup with MLX90614 or AMG8833 can detect elevated body temperatures from a distance.

Use Case:

  • Entry checkpoints at schools or offices
  • Event management
  • Health kiosks

This is a great social-impact project and can be built for under $100 using components from Shop4Makers.

6. Animal Monitoring in Agriculture

Use infrared sensors to monitor livestock health, especially in barns or at night. Sudden temperature changes may indicate sickness or distress.

Use Case:

  • Livestock health monitoring
  • Wildlife camera traps
  • Smart farming systems

Arduino boards like the Mega 2560 give you multiple input/output pins to integrate environmental sensors as well.

7. Intruder Alert Security System

Upgrade your Arduino security system by adding thermal sensing to catch intruders who might evade PIR sensors.

Use Case:

  • Night-time surveillance
  • Motion-based video recording
  • Mobile alerts with GSM or Wi-Fi modules

Pair your system with a GSM module to send SMS alerts, or with a camera module for photo evidence.

How to Get Started with Infrared Camera Arduino Projects

To get started, you’ll need:

  1. Arduino board (Uno/Nano/Mega/ESP32)
  2. Infrared camera module (e.g., MLX90640 or AMG8833)
  3. Jumper wires and breadboard
  4. Display (OLED or LCD)
  5. Optional modules (Wi-Fi, GSM, relay)

You can find most of these components at Shop4Makers, which offers both kits and standalone modules at competitive prices.

Tips for Optimizing Your Infrared Camera Arduino Setup

  • Use libraries: Most thermal cameras have libraries available on Arduino IDE.
  • Shield your sensors: External light or heat sources can interfere with readings.
  • Fine-tune the frame rate: Higher resolution requires more processing power.
  • Calibrate: Test known temperature sources to ensure accuracy.
  • Visualize output: Use heat maps for better interpretation.

Why Buy from Shop4Makers?

At Shop4Makers, we believe in empowering makers and innovators. That’s why we stock high-quality, compatible modules perfect for projects like the infrared camera Arduino setup.

  • ✅ Fast delivery in Morocco
  • ✅ Original modules tested for Arduino
  • ✅ Project tutorials & community support
  • ✅ Affordable thermal camera sensors

Whether you’re looking for inspiration or components, Shop4Makers has what you need to bring your ideas to life.

Conclusion: Future of Arduino and Thermal Vision

The fusion of infrared camera Arduino technologies is just the beginning. As prices fall and sensors improve, expect more intelligent systems powered by open-source hardware.

Whether you’re building a fire-detecting robot or a smart thermostat, thermal vision adds a new level of intelligence to your devices. Explore all your options and components today on Shop4Makers and start creating your own heat-sensing world.
