Understanding the Protocole SPI: A Complete Guide

In the world of embedded systems and microcontrollers, efficient communication between components is vital. One of the most widely used communication methods in electronics is the protocole SPI. At Shop4makers.com, we cater to the needs of engineers, developers, and enthusiasts looking to fully understand and leverage this powerful tool.

This guide dives deep into what the SPI is, how it works, its advantages, practical applications, and why you should master it for your next electronic project.

What is the Protocole SPI?

SPI stands for Serial Peripheral Interface. It is a synchronous serial communication protocol developed by Motorola in the 1980s. The protocole SPI enables high-speed, full-duplex data transmission between a master device and one or more slave devices.

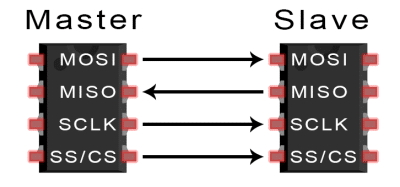

Unlike other protocols like I2C, SPI does not use addressing, which makes it simpler and faster in many cases. The protocole SPI uses four main wires:

1. MOSI (Master Out Slave In) – Sends data from the master to the slave
2. MISO (Master In Slave Out) – Sends data from the slave to the master
3. SCLK (Serial Clock) – Generated by the master to synchronize communication
4. SS (Slave Select) – Enables communication with the intended slave

This four-wire system allows for fast and efficient communication, especially in systems requiring rapid data transfer, such as display drivers, sensors, or memory devices.

Why the Protocole SPI is Essential for Makers and Engineers

At Shop4makers.com, we’ve seen a growing interest in the SPI because of its versatility and performance in real-world projects. Here’s why it matters:

1. Speed and Efficiency

The protocole SPI supports higher data rates than many other serial communication methods. Depending on the microcontroller and device specs, SPI can easily operate at speeds of several megahertz, making it ideal for applications requiring quick data transfer.

2. Full Duplex Communication

Unlike I2C which is half-duplex, the SPI is full duplex. This means data can be transmitted and received simultaneously, increasing performance and reducing delays.

3. Simple Hardware Connections

SPI doesn’t need complex handshaking or arbitration logic. It’s straightforward to implement with fewer lines of code and simpler physical setup, especially when using breakout boards and shields.

4. Scalability

Although SPI does not use addresses like I2C, multiple slave devices can be connected using separate Slave Select lines. This flexibility allows the SPI to serve various roles in complex electronic systems.

Key Applications of the Protocole SPI

The protocole SPI is widely used in both consumer electronics and industrial systems. At Shop4makers.com, our customers commonly integrate SPI in:

• Flash Memory Modules (e.g., EEPROM, NOR Flash)
• Digital Potentiometers
• LCD and OLED Displays
• Sensors (gyroscopes, accelerometers, temperature sensors)
• RF Modules and Transceivers
• Real-Time Clocks

Each of these components benefits from SPI’s speed and synchronous communication capabilities.

Protocole SPI vs Other Communication Protocols

Understanding how SPI compares with other protocols helps you choose the best option for your project.

The protocole SPI shines in speed and simplicity, but it requires more GPIOs as the number of devices increases. Use I2C when you need more devices on fewer pins, and UART for point-to-point communication.

Common Challenges Using the Protocole SPI

Despite its strengths, the protocole SPI comes with a few drawbacks:

1. More Pins Required

Each slave device typically needs a dedicated SS (Slave Select) line. This can become impractical when many devices are involved.

2. No Acknowledgment Mechanism

Unlike I2C, SPI doesn’t support ACK/NACK, making it harder to confirm data delivery unless you build custom error-checking logic.

3. No Standard Speed or Protocol

SPI is more of a guideline than a strict standard, meaning devices from different manufacturers might have variations in their SPI implementation.

That said, with proper planning and component selection (all available on Shop4makers.com), these challenges are easily managed.

Best Practices for Working with the Protocole SPI

At Shop4makers.com, we help makers avoid common pitfalls when working with the protocole SPI. Here are our top recommendations:

• Match Voltage Levels: Ensure that all components share compatible voltage levels (e.g., 3.3V vs 5V).
• Check Clock Polarity & Phase: Devices may use different modes (SPI Mode 0 to 3), so always verify CPOL and CPHA settings.
• Keep Cables Short: SPI signals degrade over long distances, so keep connections short and shielded where possible.
• Use Logic Analyzers: Troubleshooting SPI is easier with tools that show signal timing and logic levels.

Top Protocole SPI-Compatible Components on Shop4makers.com

Here are a few of the top-selling SPI-compatible components you can find on Shop4makers.com:

• MFRC522 RFID Module
• W25Q64 Flash Memory IC
• SSD1306 OLED Displays
• ADXL345 Accelerometer
• MCP3008 ADC Chip

Each product page includes datasheets, example projects, and support from our expert team to help you get started quickly.

Conclusion: Why the Protocole SPI Still Matters

The protocole SPI remains one of the most efficient and reliable methods for device communication in embedded systems. Its simplicity, speed, and flexibility make it ideal for a wide range of applications, from DIY electronics to industrial automation.

Whether you’re building your first Arduino project or designing a complex IoT system, mastering the protocole SPI will give you a powerful advantage.

Visit Shop4makers.com to explore our curated selection of SPI-compatible components, tutorials, and maker tools that empower you to bring your ideas to life.
