RS 232 TTL: The Ultimate Guide for Makers and Engineers
In the evolving world of electronics, one small yet mighty tool stands out: the RS 232 TTL converter. Whether you’re building a microcontroller-based project, communicating between devices, or debugging hardware, understanding how to use RS 232 TTL can elevate your DIY skills and technical capabilities.
In this detailed guide by Shop4Makers.com, we dive deep into everything you need to know about RS 232 TTL—from its definition to real-world applications, wiring tips, and the best practices to follow.

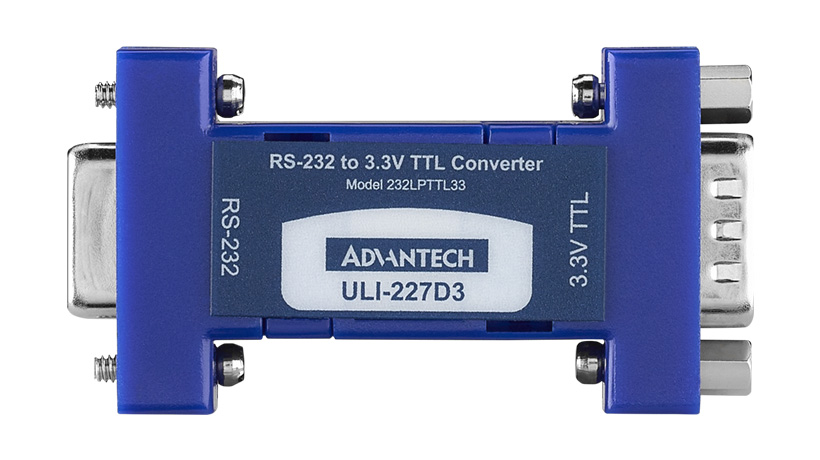

What is RS 232 TTL?
The term RS 232 TTL refers to a serial communication interface that bridges RS-232 (used by older PCs and devices) and TTL (Transistor-Transistor Logic) signals, which are standard in microcontrollers like Arduino, ESP32, and Raspberry Pi.
📌 RS-232 Overview
RS-232 is a communication protocol standard for serial ports, typically using ±12V signals. It’s robust, long-range, but not directly compatible with 5V/3.3V logic-level devices.
📌 TTL Overview
TTL signals are used within most microcontrollers and modern digital circuits. They operate at logic levels of 0V (low) and 3.3V/5V (high).
🔁 Why Convert RS 232 to TTL?
Because of the voltage differences, directly connecting an RS-232 port to a TTL device could damage your microcontroller. That’s why you need a RS 232 TTL converter—it adjusts the voltage levels safely, allowing seamless data communication.
Top 7 Powerful Uses of RS 232 TTL in Modern Electronics
1. Microcontroller Programming and Debugging
Many boards like Arduino or STM32 require serial communication for firmware uploading and debugging. RS 232 TTL converters allow communication between your PC and the board through serial monitors, making it easy to detect bugs or send commands.
2. Industrial Equipment Communication
A lot of legacy industrial machines still use RS-232 ports. You can use a RS 232 TTL adapter to read or send data to these machines with modern logic-level devices, giving you control over motors, sensors, or controllers.
3. GPS Modules and IoT Devices
Some GPS receivers output RS-232 signals, while your microcontroller reads TTL. With a converter, you can successfully retrieve real-time location data, essential for tracking and automation systems.
4. POS Systems and Barcode Readers
Point-of-Sale systems and certain barcode scanners still use RS-232. A RS 232 TTL module helps integrate these devices into modern embedded systems for inventory or automation setups.
5. Home Automation Projects
Connect older home automation systems using RS-232 with smart controllers or Raspberry Pi via a converter. This allows you to add remote control features using Wi-Fi or Bluetooth.
6. Sensor Data Logging
RS-232 sensors like digital thermometers or gas sensors can output readings via serial communication. With a converter, these values can be logged and analyzed through TTL devices.
7. Router and Modem Access
Network engineers often use RS 232 TTL cables to access UART ports of routers or modems for configuration via serial terminal. This is a crucial step for flashing firmware or troubleshooting.
How to Use RS 232 TTL Converters Correctly
🛠️ Choosing the Right Converter
Look for converters that match your voltage requirements: 3.3V or 5V TTL. Some common chips include MAX232 or CH340 series.
🧰 Pinout and Wiring Tips
- RS-232 Side (to PC/device): Usually DB9 or DB25 port
- TTL Side (to microcontroller): Typically GND, TX, RX, VCC
Make sure to cross-connect TX to RX and RX to TX between devices.
💡 Important Setup Tips
- Always check the voltage logic level of your microcontroller
- Use proper baud rate (commonly 9600 bps)
- Keep cables short to reduce noise
- Use software like PuTTY or Arduino IDE Serial Monitor to test connections
Benefits of Using RS 232 TTL Converters
- Electrical Protection: Avoid damage to TTL devices
- Compatibility: Interface old devices with new systems
- Versatility: Use across many platforms (Linux, Windows, macOS)
- Compact & Affordable: Easily available on Shop4Makers.com
Popular RS 232 TTL Modules Available on Shop4Makers.com
At Shop4Makers.com, we offer a selection of high-quality RS 232 modules perfect for hobbyists, engineers, and IoT developers. Our modules come with durable materials, accurate signal processing, and easy-to-follow documentation.
⭐ Featured Product:
RS232 to TTL Converter Module MAX3232
- Supports 3.3V/5V
- Built-in power and TX/RX indicator LEDs
- Compact PCB design
- Ideal for Arduino, Raspberry Pi, and ESP32
🔗 Check it out on Shop4Makers.com → [link to product]
Common Mistakes to Avoid
- Incorrect voltage matching: Always double-check 3.3V vs 5V
- Wrong TX/RX connections: Reverse connections are a frequent issue
- Missing ground (GND) link: All devices must share a common ground
- Driver issues: Ensure proper USB-to-Serial drivers are installed
RS 232 TTL: Frequently Asked Questions (FAQ)
Q1: Can I use RS 232 TTL for long-distance communication?
A: RS-232 can handle longer distances than TTL, but the TTL part should be close to your device due to signal degradation.
Q2: Does it work with USB?
A: Some converters include USB-to-Serial chips, which allow you to connect RS 232 TTL devices directly to your computer.
Q3: What software do I need?
A: Tools like PuTTY, RealTerm, or Arduino IDE work perfectly for serial communication with RS 232 TTL converters.
Conclusion: Why Every Maker Needs a RS 232 TTL Converter
The RS 232 TTL converter is a small yet essential tool that every maker, hobbyist, and embedded system developer should have in their toolkit. Whether you’re programming a microcontroller, communicating with old hardware, or building a full-scale IoT project, it provides seamless connectivity between the old and the new.
Thanks to platforms like Shop4Makers.com, getting a reliable RS 232 TTL converter has never been easier. Make sure to explore our catalog and take your projects to the next level.
👉 Ready to start your next electronics project?
Order your RS 232 TTL converter today on Shop4Makers.com and unlock powerful communication between your devices.
